Stope Reconciliation Utilities

• Stope Reconciliation

Utilities to manage and edit entries in the stope reconciliation database.

Data Source Summary

This window displays the configuration status of additional data sources available for stope reconciliation.

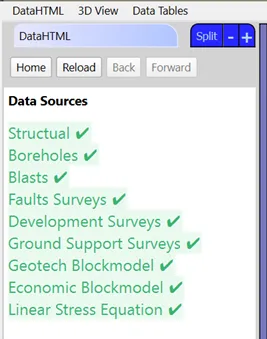

Data source list

• Data source list: Shows which sources have data
• 3D View: Displays loaded data including development, faults, ground support, blasts, structures, and boreholes
• Data tables: Show geotechnical and economic block model information

precaución

A loaded data source may not represent the most recent data or provide complete mine coverage.

Per-Face Editors

Tools for editing parameters at the individual face level.

tip

Use the Annotation tab in the 3D View to verify spacings.

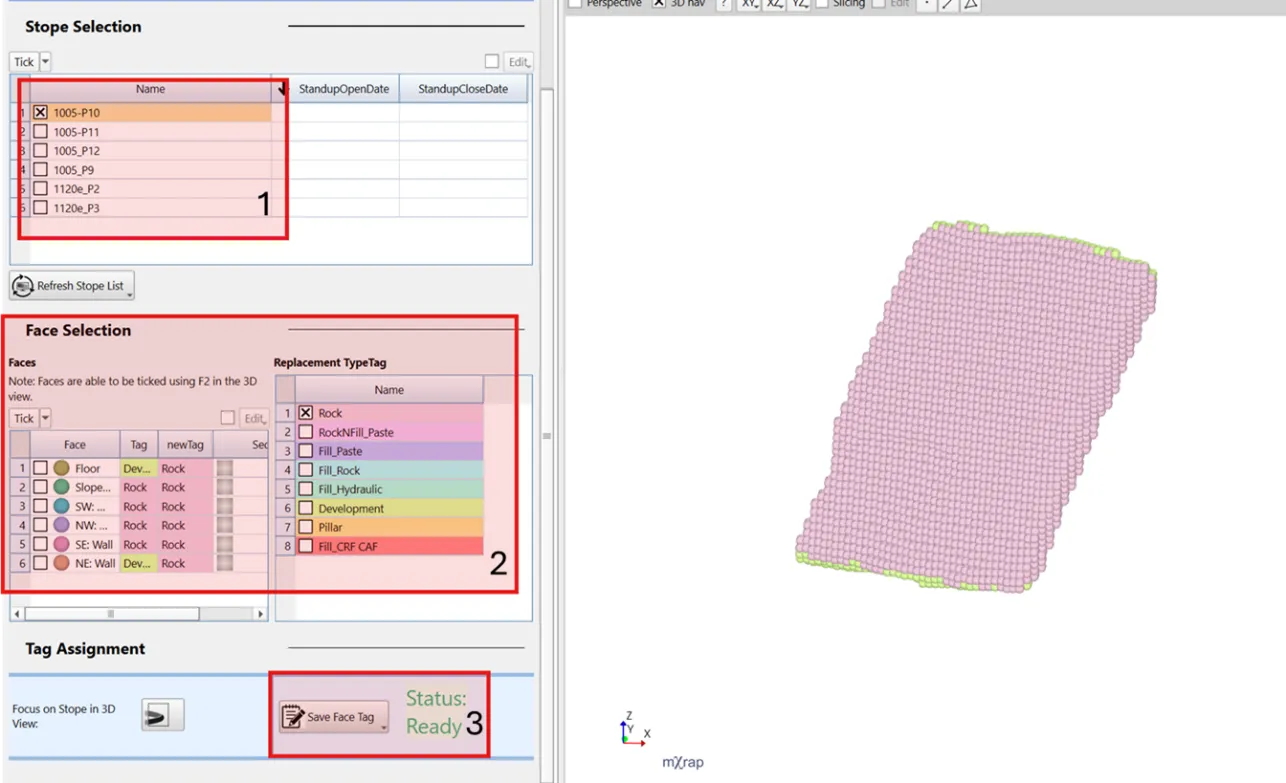

Face Tag Editor

Modify the type tag of a stope face to correct errors or update information without reprocessing the entire stope.

Example use case: Changing a face tag from "rock" to "paste fill".

1. Select a stope from the list
2. Select the face to reassign and choose a replacement tag
3. Click Save Face Tag

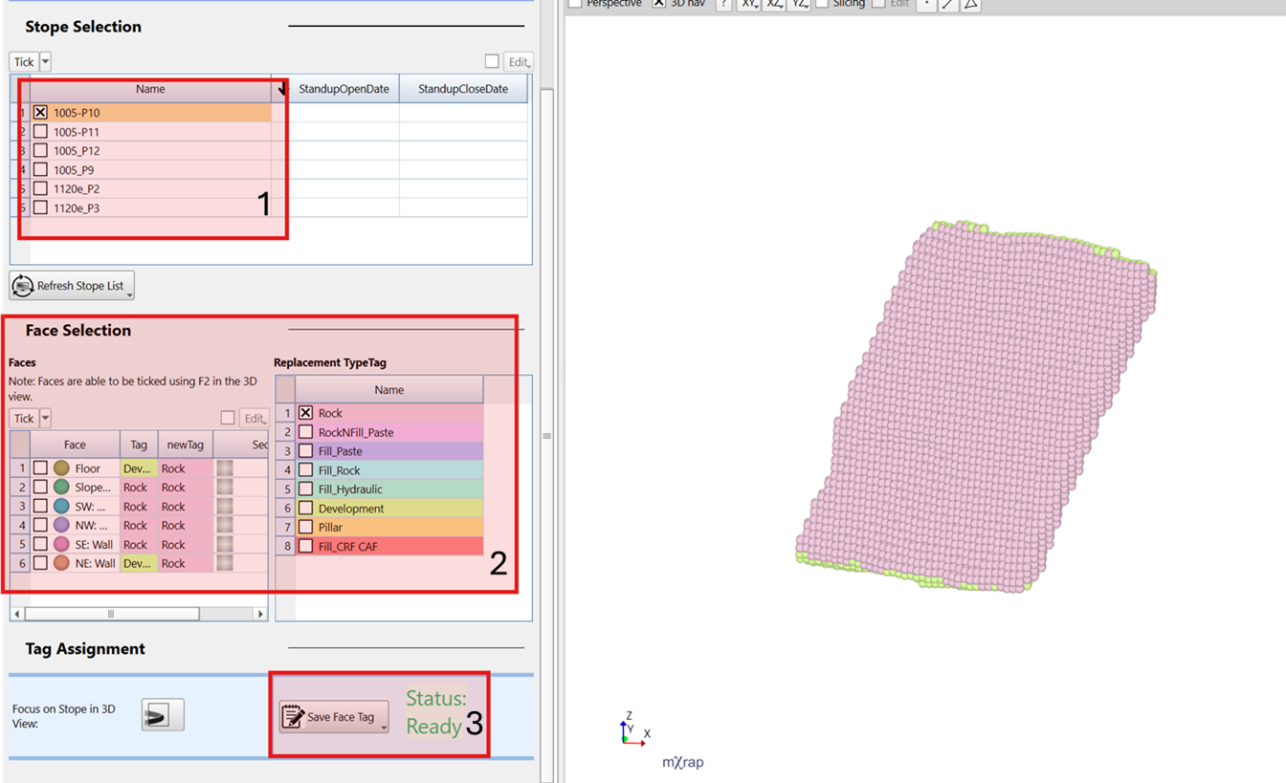

Face tag editor

tip

Focus on Stope in 3D View can help guide what a stope face should be assigned. If the stopes have standup dates when this stope was completed, its relation to surrounding stopes can be displayed (stope sequence 3D View series).

Ground Support

Quantify ground support per face using design strings (currently in development).

Parameters: Ring Spacing, Bolt Spacing, and Bolt Type are available for filtering and analysis in the Analysis window.

1. Select a stope from the table
2. Configure ring spacing, bolt spacing, bolt type, and face selection
3. Click Push Ticked to assign tags to faces
4. Click Save All when complete

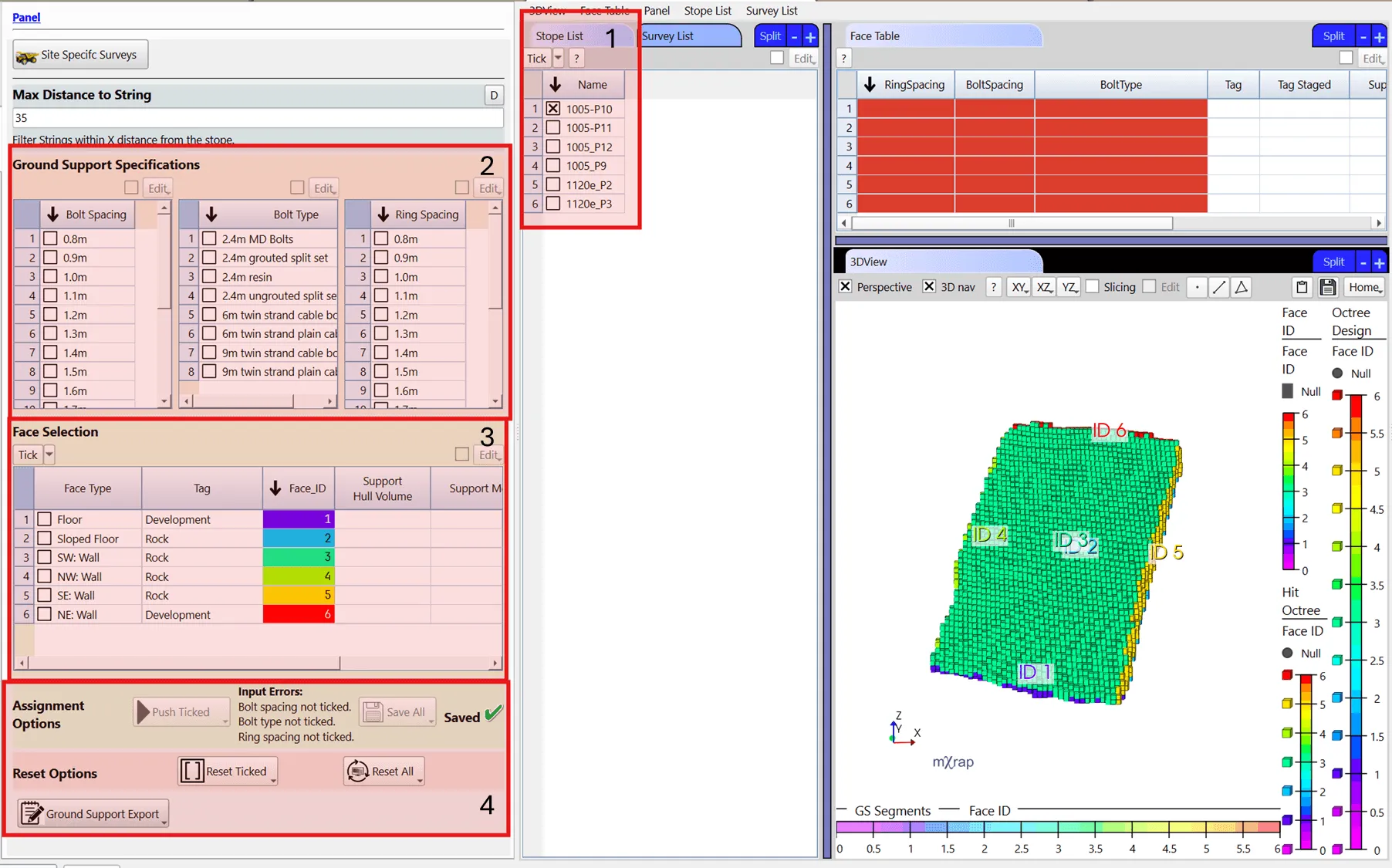

Ground support tags

tip

Tags can be assigned even when survey data is missing.

Geotechnical Information

Extract geotechnical data from block models or boreholes to calculate stability chart factors.

Data sources:

• Block model sampling
• Borehole sampling (face-specific or regional)

1. Select a stope from the table
2. Configure mapping variables (distances and association priority)
3. Select critical joint sets for Stability Chart calculations
4. Edit geotechnical values in the table:
   • Enable Edit option
   • Double-click cells to modify values
   • Use copy/paste for multiple cells
5. Recalculate parameters when prompted
6. Click Geotech Export to save changes

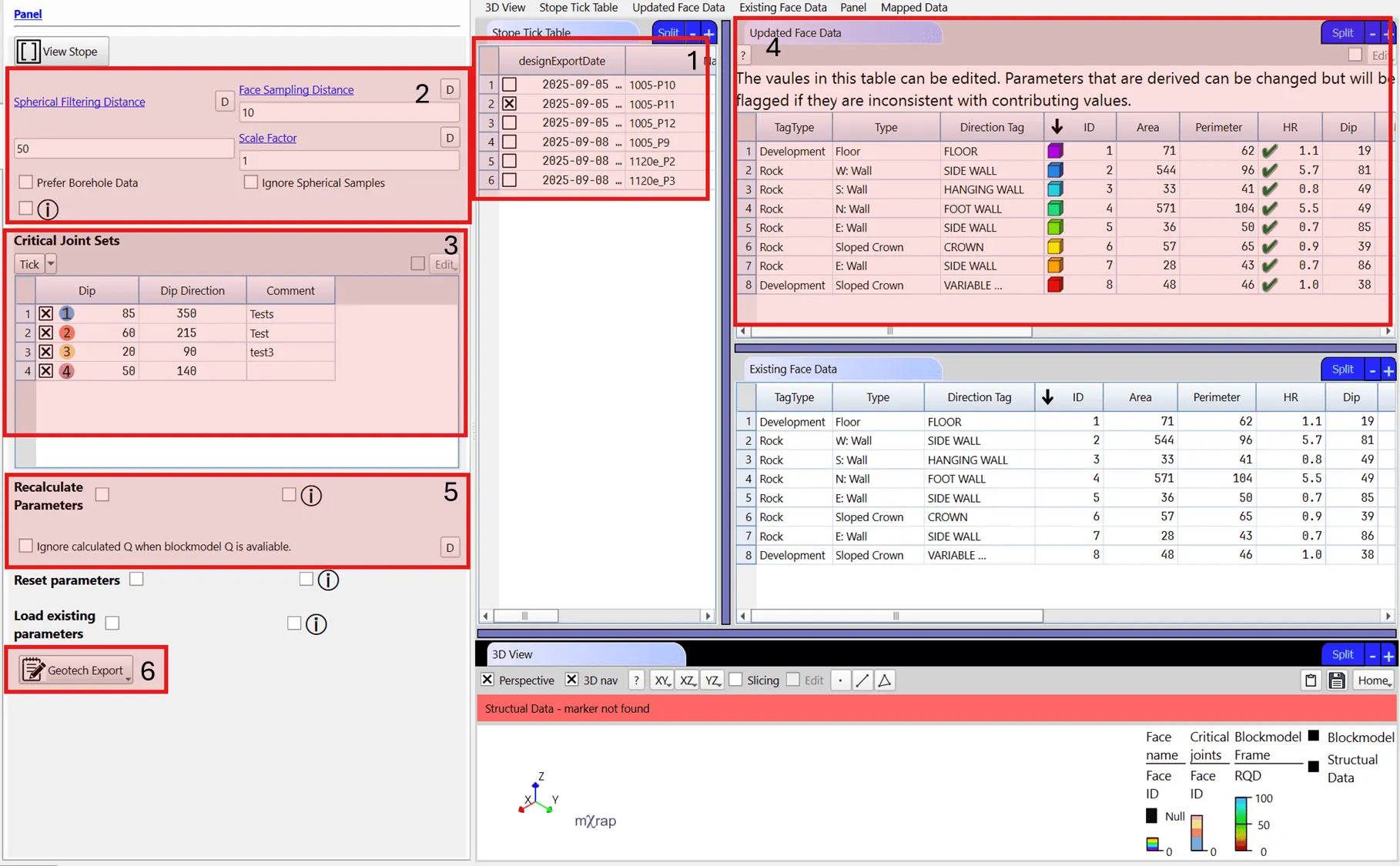

Geotechnical information

Data management options

• Reset parameter columns to original mapped values
• Load existing table data instead of source data

Per-Stope Editors

Tools for editing stope-level parameters and assigning stope tags.

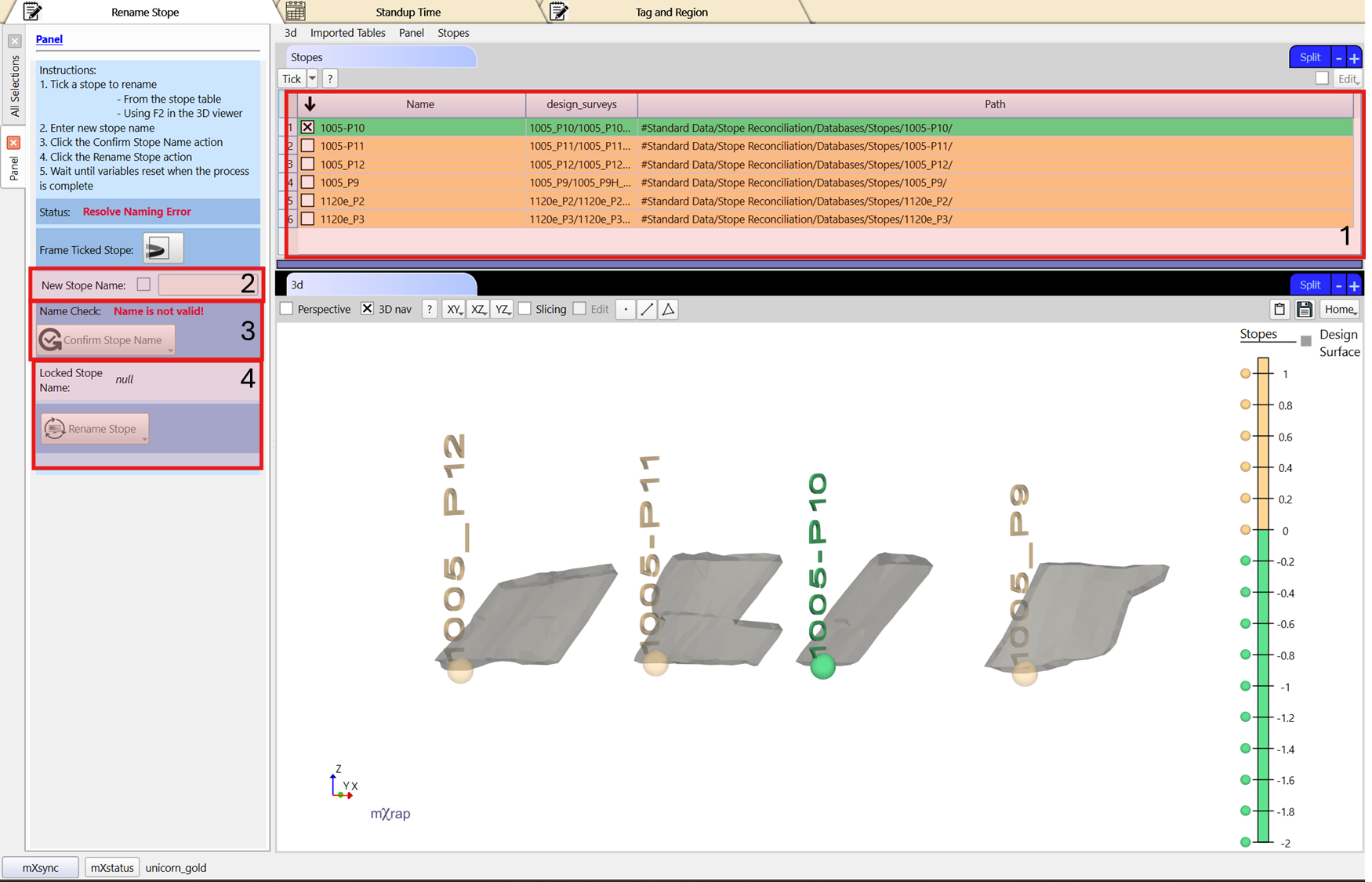

Rename Stope

Properly rename a stope across all database files and ensure folder name consistency.

precaución

Simply renaming the stope folder is insufficient as the name is stored within database files.

1. Select a stope from the table
2. Enter the new stope name
3. Click Confirm Stope Name
4. Click Rename Stope to update the database

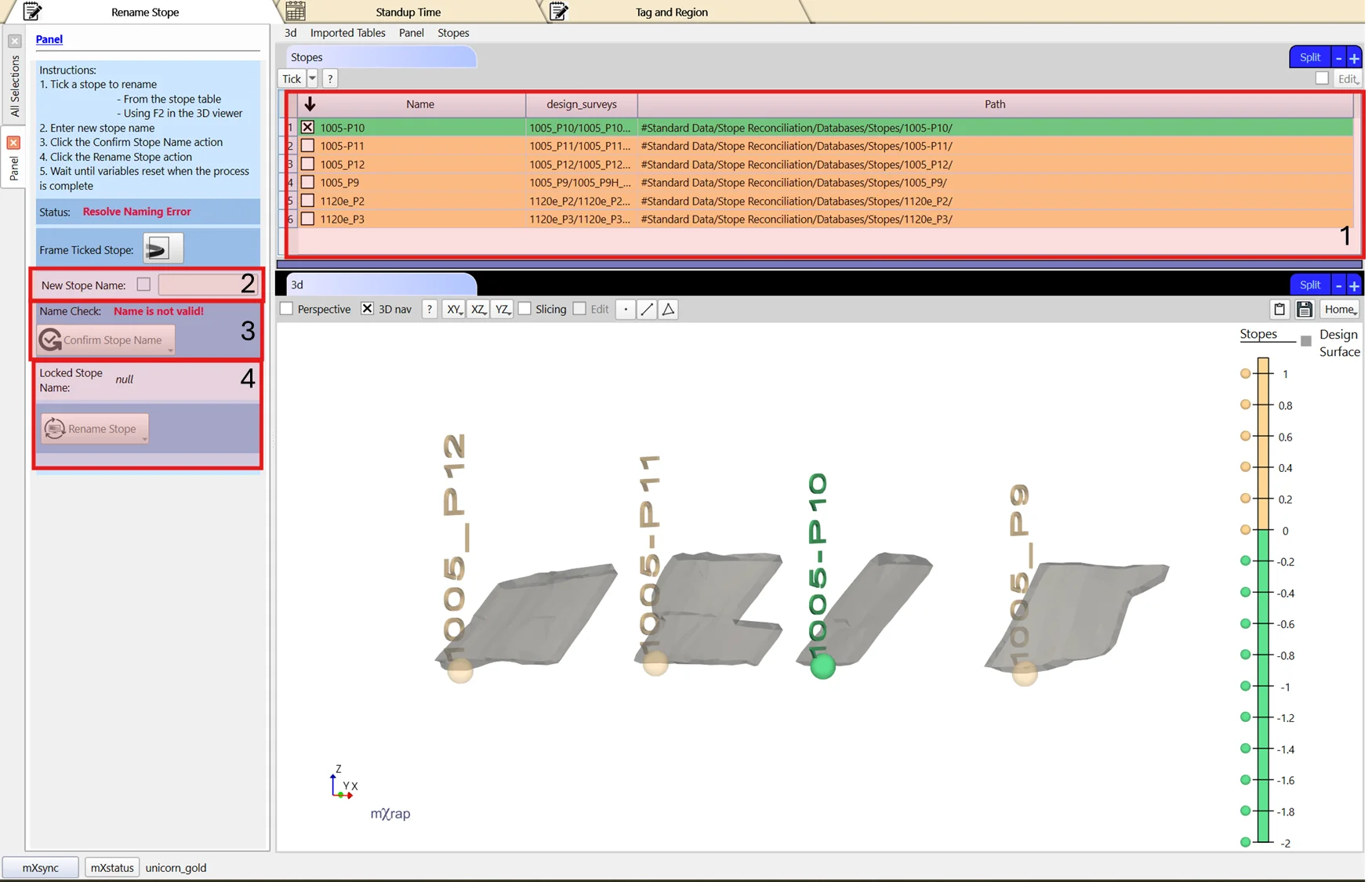

Rename stope

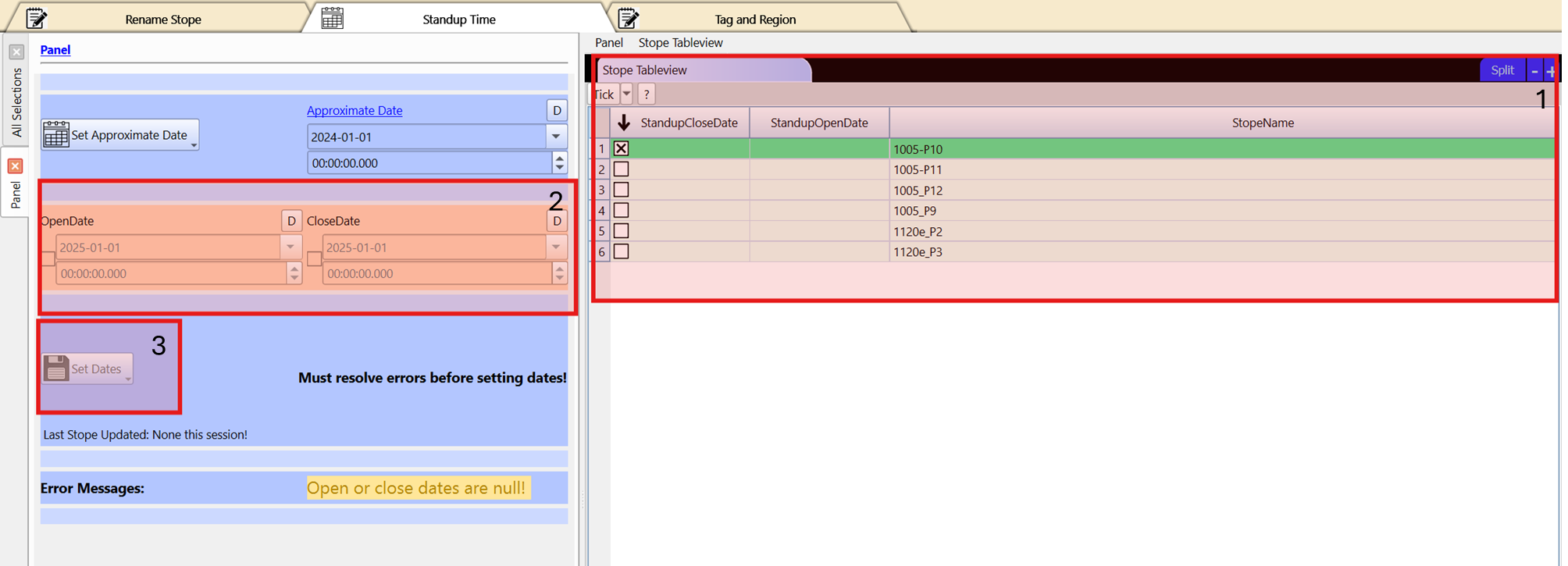

Standup Time

Edit standup dates for selected stopes.

1. Select a stope from the table
2. Set Open Date and Close Date
3. Click Set Dates to update the database

Tags and Regions

Assign mining method, access, and sequence tags to stopes. Region tags are automatically assigned from 3D View selection volumes.

1. Select a stope from the table
2. Configure mining method, access, and sequence tags (all required; use "uncategorised" if not applicable)
3. Click Save Stope Tag to update the database

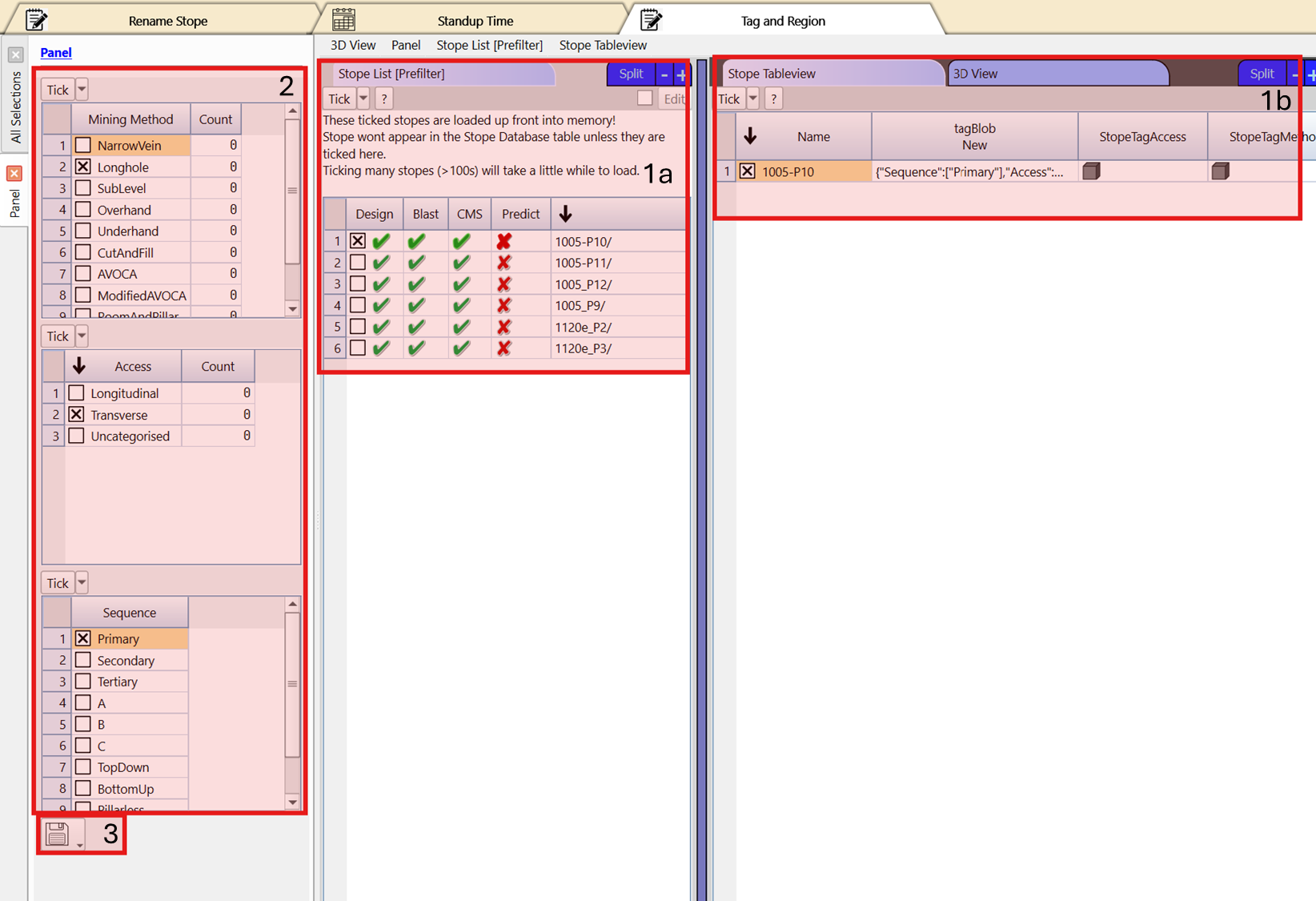

Stope tag update

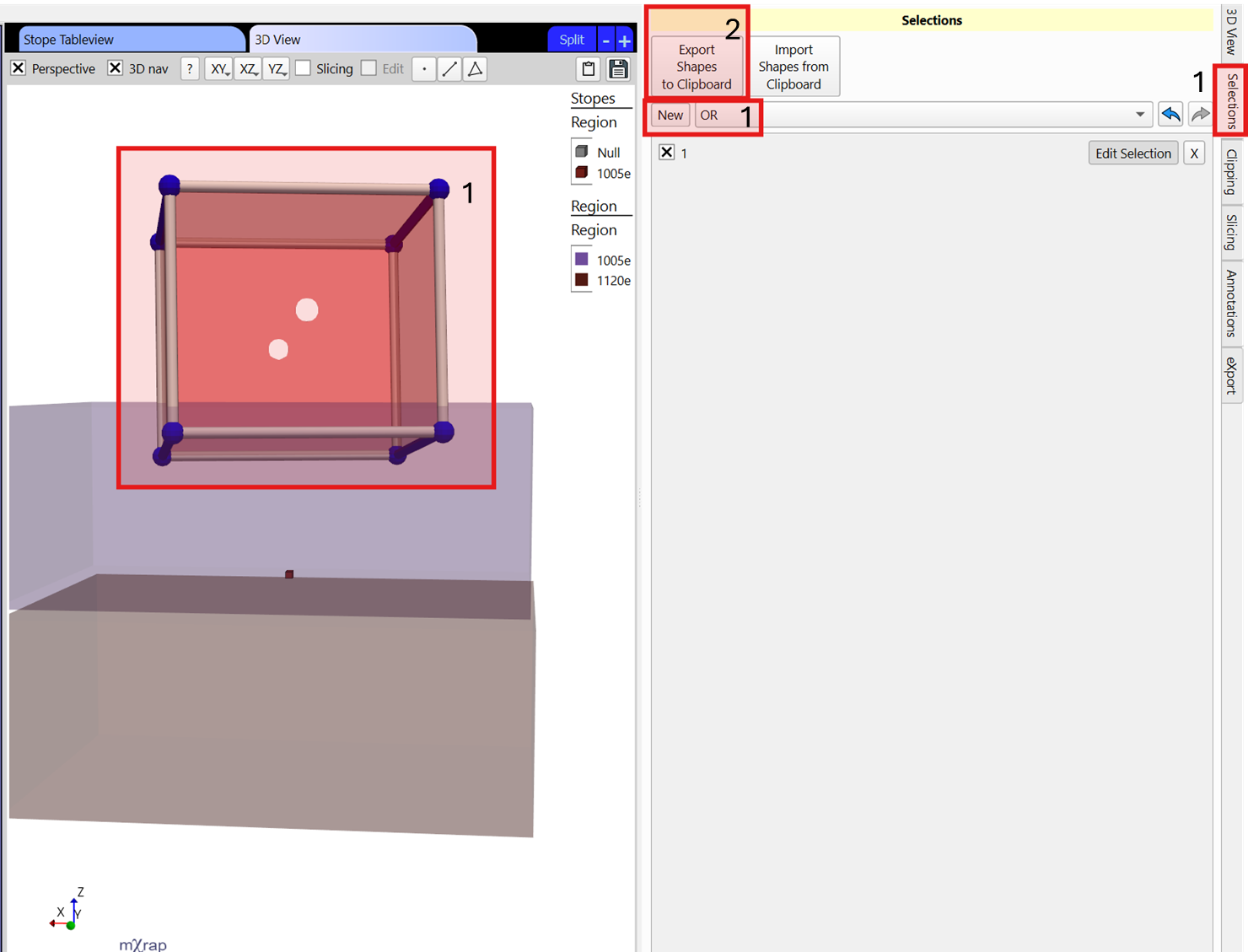

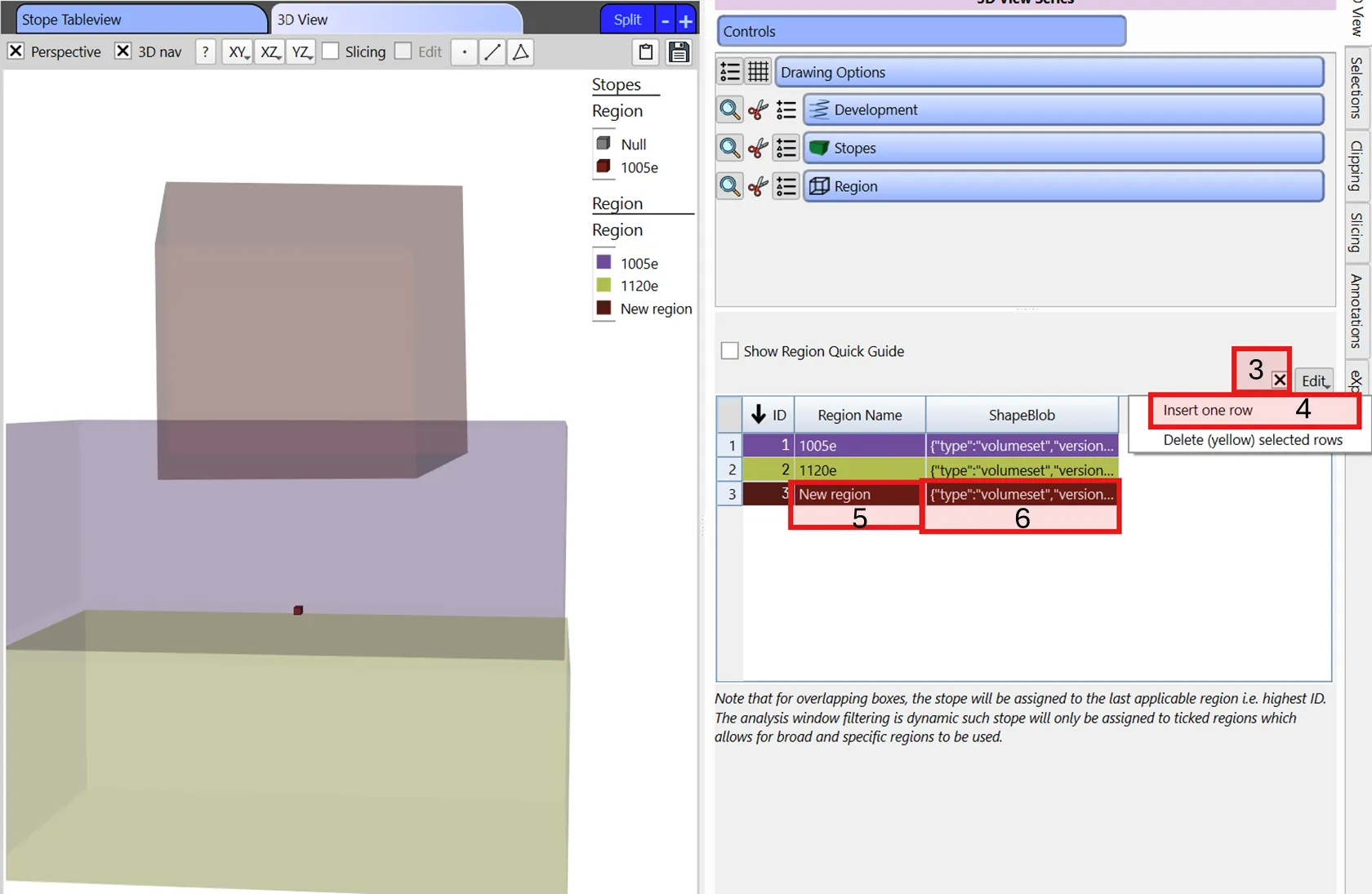

Configuring New Region Volumes

1. Navigate to Selections Tab and create a selection covering the mining region
2. Click Export Shapes to Clipboard
3. Return to this panel and check the table checkbox (top right)
4. Click Edit → Insert one row
5. Enter region name in the Region column
6. Paste the exported selection in the ShapeBlob column

Region assignment priority

For overlapping regions, stopes are assigned to the highest ID region. The analysis window allows dynamic filtering by selected regions.

Survey Setup

Import mine-wide surveys for stope reconciliation analysis.

Best practice

CMS/LiDAR scans can be significantly decimated without losing relevant detail.

Available Survey Tools

• Development surveys
• Fault surveys (load only performance-impacting faults)
• Ground support surveys (designed hole strings)

3D Visualisation

Displays all loaded surveys for verification and analysis.

File Format Issues

.dtm, .str, and .dxf files often load with swapped XY coordinates. Check for outlying surveys by pressing R in the 3D View and swap XY columns in the input config tab if needed.

Training Resources

Stope app that allows to edit or update certain information about your stopes such as tagging, naming and geotech data.
